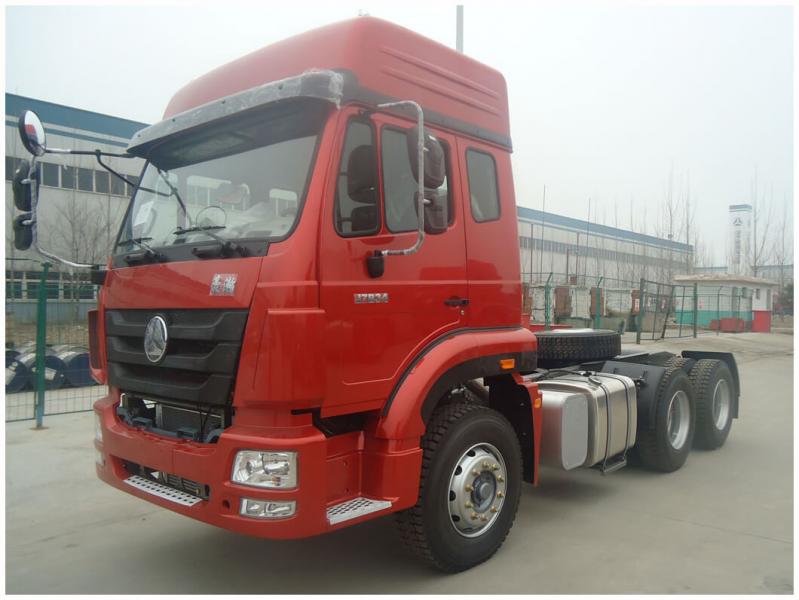

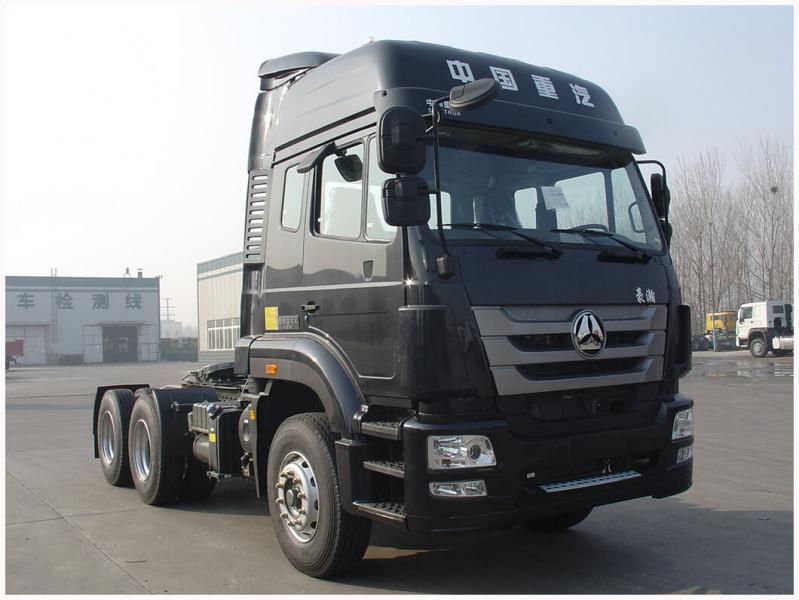

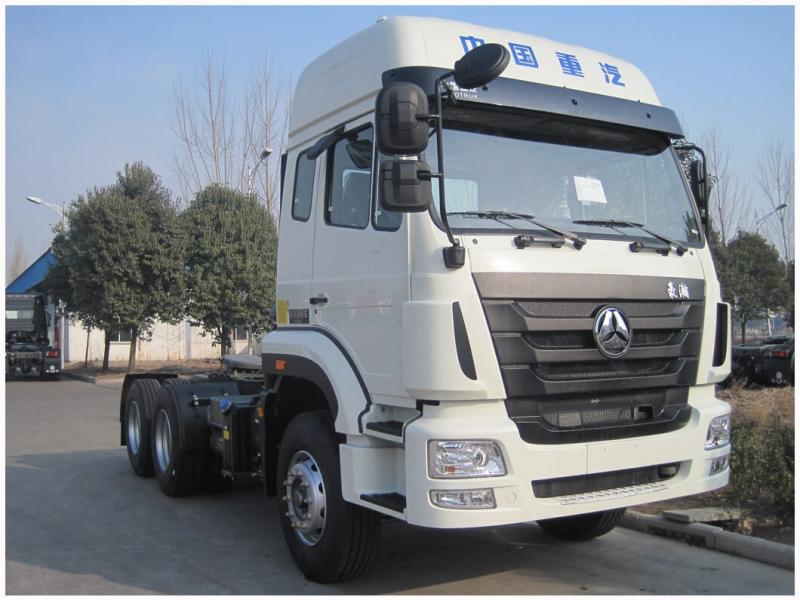

HOHAN 6X4 Tractor Truck

Chassis Model

ZZ4257N3246D1

Driving Type

6x4

Cabin

H18 Cab, two seats, with two sleeper, with A/C; Equipped with Benz NG85 cab,Half round type aviation instrument desk with a large LCD display meter and relay control system;Hydraulically damped adjustable driver’s seat and rigid adjustable co-drivers seat with safety belts;Single berth with 4-point support fully floating suspension and shock absorber with transverse stabilizer;Electric glass elevator The manual door lock;Large, truck type convex 2 arm wind screen wiper system with 3 speeds;FM/AM/SW, 4 band radio/cassette recorder;Adjustable steering wheel.

Engine

Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WD615.47,  371 HP ;wd615.69,336hp;
Emission ：Euro 2
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L

Transmission

HW19710, 10F & 2R

Steering

ZF power steering, modol ZF8118, hydraulic steering with power assitance

Front Axle

HF7,1x7000 KGS

Steering with doubleT-cross section beam

Rear Axle

ST16, 2x16000 KGS
Pressed axle housing, central single reduction with hub reduction,with differential locks between wheels and axles.
Ratio:4.11

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Chassis

Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members
Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer

Brake

Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tyres

315/80R22.5, one spare tyre

Fuel Tank

400L

Fifth Wheel

90#

Overall Dimension

6850*2496*3750mm
