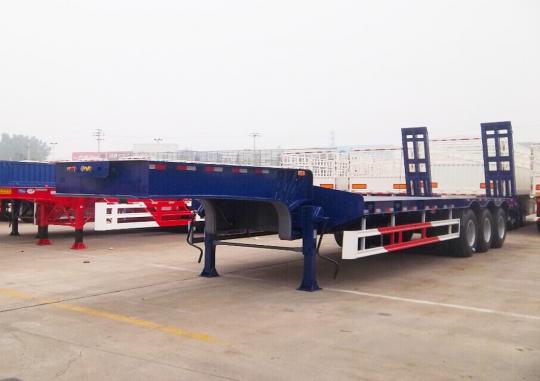

Low bed Semi trailer

Model

Low bed Semi trailer

Dimension

16000mm ×3500mm (Size can be tailored to suit individual needs.)

Curb Weight

About 9-13T

Loading Capacity (T)

Axle

13 T/16T, FUWA /BPW /Huajing Brand

Rim

6.5-20/7.5-20/8.00-20/8.5-20 (specially intended for oversea market)

Tire

8.25R20/10.00R20/11.00R20/12.00R20

Suspension

Mechanical suspension (German or American type) or air suspension (Chinese brand or BPW brand ) (specially intended for oversea market)

Spring Leaf

90(W)mm×13(Thickness)mm×10 layers or 100mm×12mm×12layers

(specially intended for oversea market)

King Pin

JOST brand 2.0 or 3.5inch (bolted or welded type)

Landing Gear

JOST brand D200T or Chinese brand 28Tons (Double speed)

Main Beam

Height: 450mm-520mm Upper plate: 14mm-25mm Middle plate: 8mm-12mm Lower plate: 16mm-25mm; Material: Q345B Steel

Axles

FUWA Brand, 13Tons or 16Tons

Side Beam

16mm -30mm steel channel (Material: Q235steel)

Bottom Platform

3-6mm thick checkered plate

Ladder

Manually operated or hydraulic type

Brake Chamber

WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TKL brand); 45L air tanks (Specially intended for oversea markets)

ABS

Optional

Twist Locks

Four ,Eight or Twelve pieces (lifting type or screw type)

Valve

WABCO valve

Light

LED light(Specially intended for oversea markets)

Voltage

24V

Socket(Receptacle)

7-pin Socket (for 7 wire harness)

Tool Box

1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)

Surface Coating

Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

Shipping Terms

Transported by the bulk carrier in an RORO or 40HQ container.
