Dump Truck Tractor Truck Cargo Truck Mixer Trucks Special Truck Light Truck Semi Trailer Mining Truck sinotruk parts

<

>

Fuel Tanker Trailer

Color:
VIEW MORE

Get Latest Price

Print Email

Place of Origin: China

Product Name: Semi Trailer

Certification: ISO/3C/BV/IFA/SGS

Minimum Order Quantity: 1 Unit

Packaging Details:Nude or Waxing in Roro or bulk ship

Delivery Time: 20 working days after received your advance payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 4,000units per month

Specifications FAQ Our Advantages

Configuration Sheet

配置单

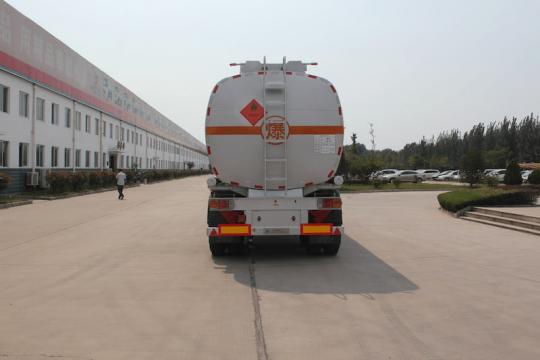

Reference picture

参考图片

（the picture for reference only, please consult with spec and drawings

图片仅供参考，请以最终规范及图纸为准）

Fuel Tanker Trailer

Type

产品类型

50000L oil transport semi-trailer

50000L 碳钢运油半挂车

Model

型号

DSY9401GPGL42

Parameter

参数

Overall Dimension(mm)

整车尺寸

Length×width×height: 13000 mm* 2500 mm*3900mm

Fifth Wheel Height(mm)

牵引高度

The height will be adjusted according to the tractor specification

可根据牵引车参数调整

Tare Weight（kg）

自重

12500

12.5T

Compartments

仓数

3

Payload （CBM）

载重

50T

Fabric

材质

Main Beam(mm)

纵梁

Submerged arc welding，

埋弧焊，

Front/Rear end plate （mm）

前/后封头

6mm carbon steel

6mm

Wave-proof plate

隔舱板

5mm carbon steel

5mm

Tank Body(mm)

筒体

5mm carbon steel

5mm

Configuration

配置

Tire

轮胎

type: 12R22.5,equip 12pcs per chassis, T

规格：12R22.5，每辆车配备12条,

、

Type:9.0R22.5, equip12 pcs per chassis.

型号：9.0R22.5，每辆车配备12件

Axle

车轴

CARRY13T，3 sets

凯利 13吨级，3根

Suspension

悬挂

Thickened mechanical suspension

加厚机械悬架

Bottom safety val

海底阀

4 inch，3set，

4寸，3套，

Manhole cover

人孔盖

3pcs

3个

Discharging system

API卸料阀

4 inch，3set，

4寸，3套，

Discharging pipe

卸料管

Rubber hose ;4 inch

橡胶软管； 4英寸

Landing Gear

支腿

JOST E100

约斯特E100

Kingpin

牵引销

3.5” ,exchangeable

90#，装配式

Catwalk

顶部走道

Aluminum alloy tank top enclosure+manual lifting guardrail

铝合金罐顶围板+手动提升护栏

Brake System

制动系统

Dual air brake system,30/30 type, WABCO brake valve.

气式制动，4双2单，威伯克制动阀

Electrical System

电器系统

24V, LED lamp

24V，LED灯具

Spare Tire Carrier

备胎架

equip 1 set per chassis ，Aluminum alloy

每车配备一套，铝合金材质

Tool Box

工具箱

3set ，Aluminum alloy

3件，铝合金材质

Color

颜色

Other

其他

Two 8kg fire extinguishers, one standard static conductor wire reel, and one static conductor tow strip

8kg灭火器2个，标配导静电线盘1个，导静电拖地带1根。

Price

价格（EXW）

Effective date

有效期

20Day

Head wrench ;spare wheel crank ;
Operation Manual

On-demand customization, please leave a message for consultation, welcome to contact us to make an appointment to visit the factory.

Our Factory

Shipping

Frequently Asked Questions

1. What kind of payment do you accept?

We accept payment via TT or LC. Normally, it is 30% TT as a deposit, and the balance should be paid before shipment. As for the LC, we accept sight LC, 30 days LC, 60 days LC, and 90 days LC.

2. How long will I receive my trucks or machinery?

From the time we receive your deposit or LC, it will take about 45 days to produce the trucks, and about 35 days for machinery. For Africa, South America, and shipment takes about 40 days. For Asia and Southeast Asia countries, shipment takes about 2 weeks.

3. What is the oil consumption for your trucks?

For Sinotruk trucks, the normal oil consumption is about 35L/100Km, which depends on the actual loading situation. It will consume more when the truck is heavily loaded or on slopes.

4. What is the warranty you provide?

We provide a 1-year warranty from the date of your B/L, or 60,000Km, whichever comes first.

5. Are your trucks brand new or used?

We offer a wide range of trucks and machinery in brand new condition. Please note that we do not sell used trucks. If you require used trucks, you should look for a supplier that offers them.

6. Do you have stocked trucks or machinery?

If you need stock trucks, please let us know your detailed requirements, such as the model year, payload, etc. We will check our stock system to see if we have trucks or machinery that meet your needs. However, stock availability is not guaranteed.

7. Can I paint my LOGO on the truck?

Yes, we can paint your logo on the truck after it is finished.

8. Where is your factory located?

Our Sinotruk factory is located in Jinan city, Shandong Province. It is a 1.5-hour high-speed train ride from Beijing, a 2.5-hour flight from Guangzhou, and a 4-hour high-speed train ride from Shanghai.

Our Advantages

Price advantage:

We sell in factories without middlemen, so our price will be better than that of trading companies

Quality advantage:

From the moment the customer places an order, we will be equipped with a professional team. Professional personnel are responsible for the design, production, tracking and transportation. We adopt the principle of responsibility system, and the quality can be guaranteed.

Professional advantages:

We have our own R & D team and design team. Our team has received professional training and good education, and is skilled in using CAD, SW and other drawing tools

Service advantages:

The staff will give the most favorable and accurate quotation to the customer within 2 hours according to the customer's requirements, make the most appropriate purchase scheme for the customer, and formulate the perfect solution according to the customer's after-sales demand within 10 hours.

Inquiry

Confirm Order

Payment

Production

Shipping
