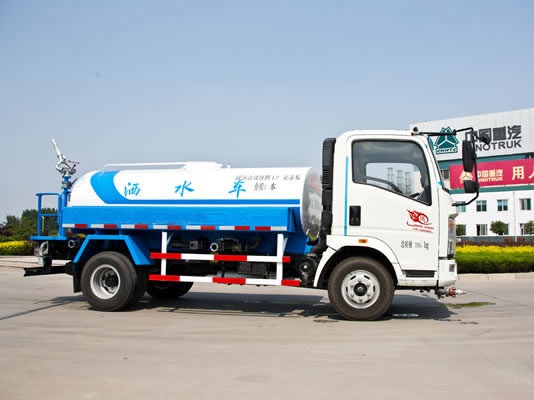

Light Duty Water Tanker Truck

Chassis Model

ZZ1167G4715C1

Driving Type

4x2

Cabin

2080 Cab, air conditioner, single bunk 45° hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds, adjustable driver’s seat, with heating and ventilating system, interior double sun visor, sunroof, radio and USB interface, safety belts, adjustable steering wheel, horn .

Engine

YC4E140-33,Horsepower 160 HP,Type 4-cylinder in-line with water cooling, turbo-charging and intercooling,Euro III emission standard

Transmission

DC6J65TC

Clutch

Single-plate diaphragm spring clutch, diameter 300mm,hydraulically operating

Front Axle

3.6

Steering

hydraulic steering with power assistance

Rear Axles

10.5,mature punching welding axle and pressed axle housing

Brake System

Service brake: dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels (optional)

Tyres Tyres

9.00R20

Dimensions

8445×2498×2650mm

Wheel base

4700mm

Tank Volume

8 CBM

Working type

Front jet, back spring, ice-resistant( extrude pressure advice), High compressed spray system cannon on the backgroup operation

Kerb weight

5660KG

vehicle weight

16000KG
